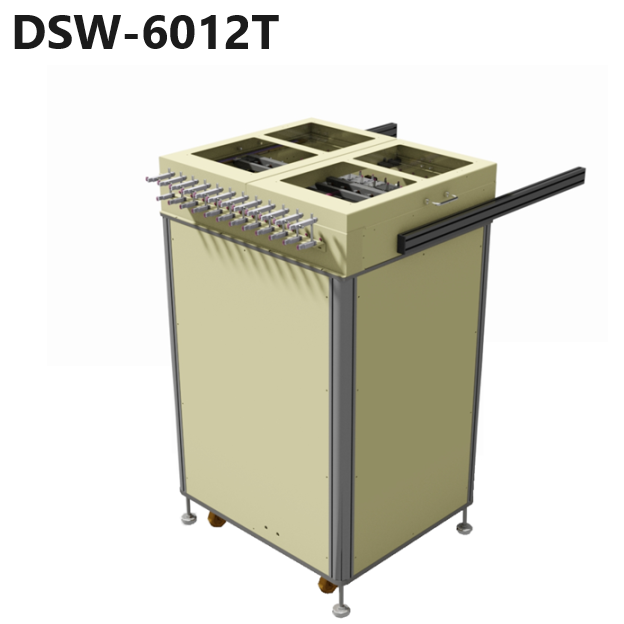

DSW-6012T Automatic Twisting Machine

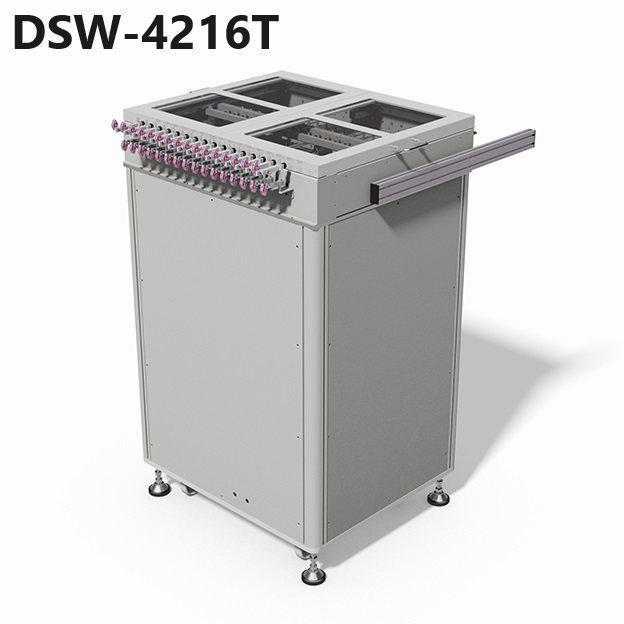

DSW-4216T Automatic Twisting Machine
DSW-8008T Automatic Twisting Machine
DSW-6012T Automatic Twisting Machine
DSW-4216T Automatic Twisting Machine
Applications

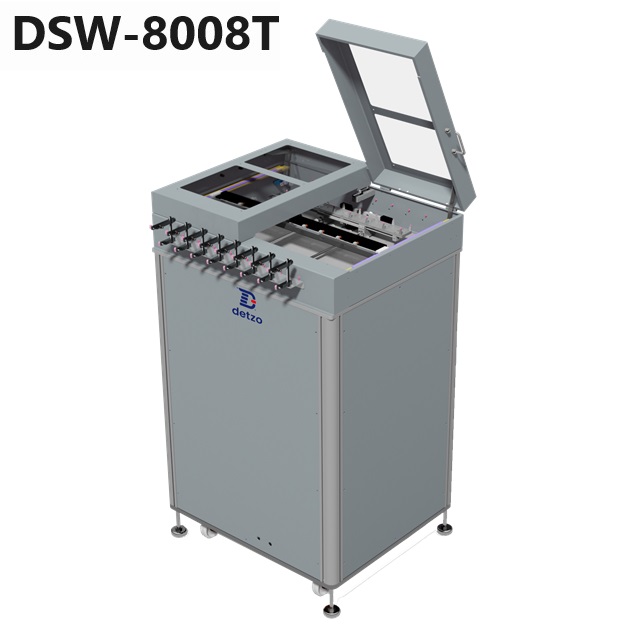

【Precision Ultra-Fine Twisting Expert: DSW-8008T Sets the Standard for High-Density Stranding】
The DETZO DSW-8008T is engineered specifically for ultra-fine copper wires ranging from Ø0.03 to Ø0.15mm. Featuring an 8-spindle synchronous system and advanced servo precision, it overcomes the tension and breakage challenges of high-speed twisting. Whether for high-frequency transformer leads or specialized multi-strand wires, the DSW-8008T ensures uniform pitch and compact structural integrity, delivering superior conductivity and reliability for your micro-electronic components.
Feature

High-Efficiency Multi-Spindle Automated Twisting Solution:

The DETZO DSW-8008T is engineered for high-volume production, integrating advanced PLC control with AC servo drive systems. Featuring specialized multi-strand twisting for ultra-fine wires and seamless external signal integration, it ensures superior product stability and ease of maintenance for modern production lines.

  • Precision Servo Drive: Equipped with an AC servo motor system for accurate positioning and reliable performance.
  • Data-Driven Analysis: Integrated PLC data storage allows for easy program logging and operational analysis.
  • Automated Operation: Supports external signal triggering for continuous operation without manual intervention.
  • Multi-Strand Twisting: Specialized function for twisting ultra-fine multi-strand wires, enhancing product consistency.
  • Industrial Reliability: Simple mechanical structure and intuitive controls for easy operation and convenient maintenance.
Technical Specifications
No. of Spindle
8 Spindles (80mm Pitch)
Wire Diameter
Ø0.03 ~ Ø0.15 mm
Strand Length
Max. 450 mm
Control System
PLC
Skein Turns 1 ~ 19 Turns Skein Speed 80 ~ 999 rpm
Flyer Turns ±1000 Turns Flyer Speed 100 ~ 6000 rpm
Power Supply 1Φ 220 Vac | 50 ~ 60 Hz ±1% Air Requirement 0.4 ~ 0.6 MPa
Power Consumption 0.9 kW Machine Weight 300 kg ±10
Machine Dimensions 875(L) x 870(W) x 1500(H) mm
Optional Item
CE Certification
Model DSW-8008T DSW-6012T DSW-5012T DSW-4216T
Automatic 8 Spindles Twisting Machine Automatic 12 Spindles Twisting Machine Automatic 12 Spindles Twisting Machine Automatic 16 Spindles Twisting Machine
