FCW-B02CM Multilayer Bifilar-Type Inductor Coil Winder
Core maximum O.D - 4.5x3.2mm

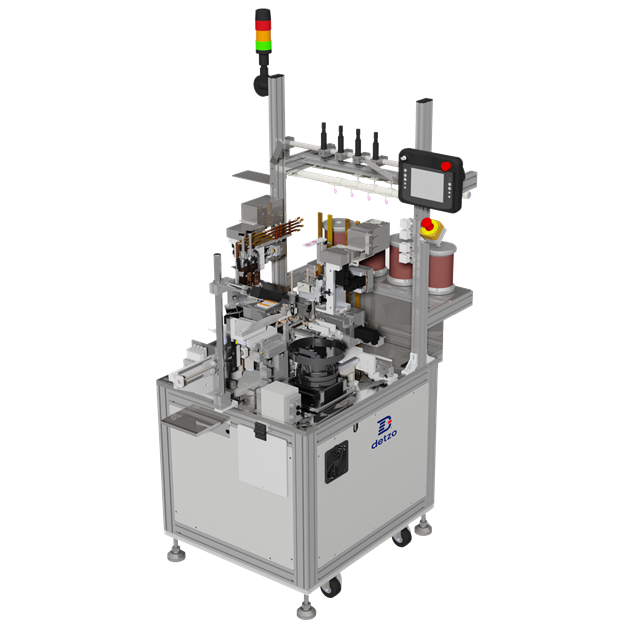

DETZO's FCW-B02CM is an advanced bifilar coil winding machine designed for producing multilayer inductors. It stands out for its precision and efficiency, making it an ideal choice for businesses seeking to enhance their production capabilities.
The FCW-B02CM is equipped with a Keyence system and an AC servo motor drive system, ensuring precise positioning and high-quality output. Its intuitive 6" HMI allows for easy program editing in dialogue mode, simplifying the operation process. The machine supports automatic feeding via a vibrating plate, significantly boosting production capacity. With precise tension control, the quality of the coils is consistently maintained. Furthermore, it can store up to 120 programs and allows quick switching between them. The machine also features hierarchical management and password storage to prevent unauthorized modifications.
This bifilar coil winding machine is versatile and can be applied across various industries, including automotive, electronics, and renewable energy. It is particularly well-suited for producing components for BLDC motors, transformers, solenoids, and more.
Choosing DETZO's FCW-B02CM means investing in a machine that combines precision with user-friendly operation. Its ability to store numerous programs and its quick switching capability make it a valuable asset for any production line. Enhance your production efficiency and quality with DETZO's innovative coil winding solutions.
Specification
| No. of spindle | 2 Spindles |
|---|---|
| Spindle pitch | 40mm |
| Applicable wire diameter (max.) | Ø0.10mm (Please contact us for more than the usage range) |
| Spindle speed | Max. 3000rpm (CW/CCW) |
| Inductor diameter (max.) | 4.5x3.2mm (Please contact us for more than the usage range) |
| Welding device | AVIO |
| Controller | PLC 14-axis control |
| Storage | Memory card |
| Power supply | 1Φ 220Vac |
| Rated frequency | 50 ~ 60Hz ±1% |
| Power consumption | 10KW |
| Air pressure demand | 0.5 ~ 0.6Mpa |
| Machine dimensions | 1330(L) x 1075(W) x 2100(H)mm |
| Machine weight | 750kg ±10 |
Optional Item
