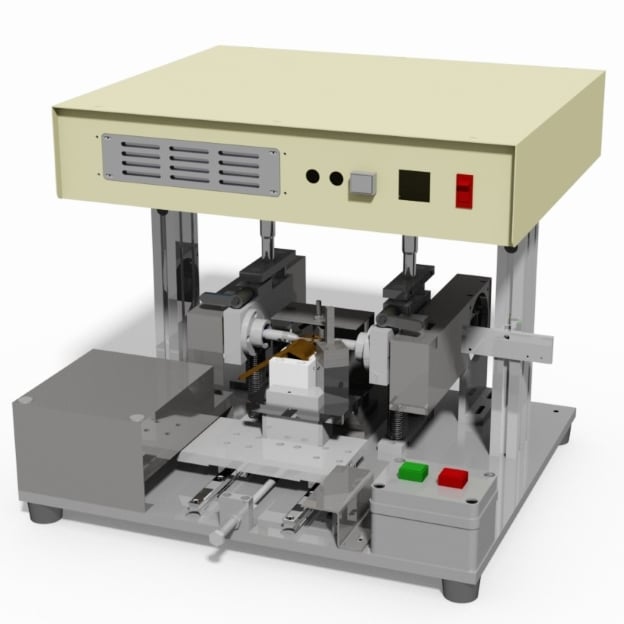

DSW-FCT Servo flat-wire stripping machine
【The Specialist for Heavy Flat-Wire Stripping: DSW-FCT Achieves Micron-Level Precision】
The DETZO DSW-FCT Servo Flat-Wire Stripping Machine is engineered to master the challenges of stripping thick and large-scale flat wires. Equipped with precision servo drives and high-resolution micrometer gauges, this model allows for cutting depth adjustments as fine as 0.01mm, ensuring complete insulation removal without damaging the conductor. Whether for E-bike motor coils or high-power transformer leads, the DSW-FCT’s quick-change tooling and precision linear guides deliver stable, rapid, and ultra-precise stripping performance for your production line.
High-Efficiency Servo Flat-Wire Stripping Solution:
The DETZO DSW-FCT is specifically engineered for thick and large flat wires, combining precision servo control with micron-level depth adjustment technology. With a quick-change tool system and stable linear rail architecture, it achieves superior processing quality for complex coil ends and high-precision film stripping requirements.
- Quick Tool Change System: Fast-release spindle tool design allows rapid replacement for different wire sizes.
- Micron-Level Depth Control: Independent micrometer gauges for precise cutting depth adjustment (min. 0.01mm).
- Simplified Tooling Design: Efficient jig structure reduces fabrication costs and streamlines the changeover process.
- Rapid Material Positioning: Equipped with manual toggle clamps for fast and stable material clamping.
- Precision Linear Guide Rails: The feeding mechanism uses high-grade linear rails for exceptional stability.
- Industrial Maintenance Design: Simple mechanical structure ensures easy operation and convenient daily maintenance.
| Stripping Speed | 2500 rpm (50Hz) / 3000 rpm (60Hz) | Power Supply | 1Φ 220 Vac | 50 ~ 60 Hz ±1% |
|---|---|---|---|
| Air Requirement | 0.4 ~ 0.6 MPa | Power Consumption | 120 W |
| Machine Weight | 38 kg ±10 | Machine Dimensions | 500(L) x 500(W) x 300(H) mm |
