Vertical Pin Inserting Machine
DETZO’s high-performance Automatic Pin Inserting Machine is engineered to provide high-precision metal terminal insertion solutions for various types of coil bobbins. Integrating a precision servo drive system with a smart feeding mechanism, the equipment ensures that every pin's insertion depth and verticality meet the most stringent industrial standards. It is the core equipment for boosting coil production automation while significantly reducing defect rates.
Featuring a user-friendly HMI and flexible parameter settings, this machine easily accommodates diverse terminal specifications, including square, round, and flat pins. It substantially lowers labor costs and enhances production line stability. Whether for electronic transformers, automotive electronic components, or various induction coils, DETZO’s pin inserting machines are your ideal partner for achieving process excellence and automation upgrades.
Special specifications
Special specifications

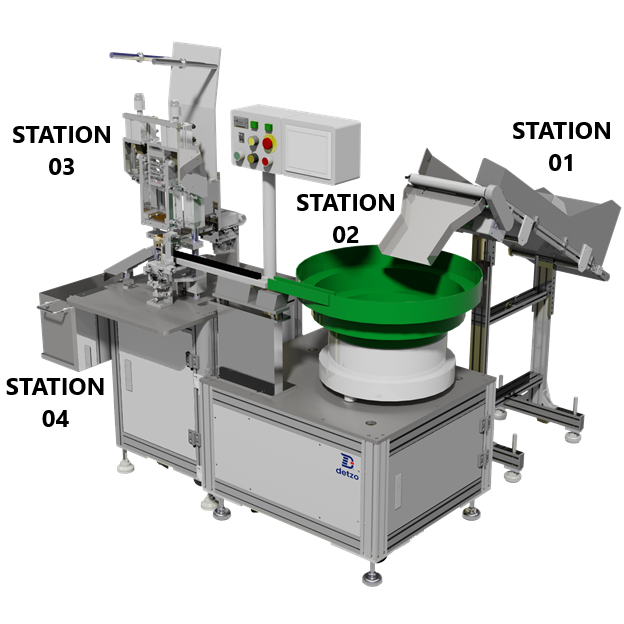

Feeding Conveyor - Stable material supply
Vibratory Bowl - Auto orientation & sorting
High-Efficiency Insertion - 3 PINs simultaneously inserted
Collection Box - Automated collection & storage
| Cycle Time | 1.5 ~ 2.0 sec / pc |
|---|---|
| Control System | PLC |
| Power Supply | 1Φ 220Vac | 50~60Hz ±1% |
| Air Requirement | 0.4 ~ 0.6 Mpa |
| Power Consumption | 1.0 kW |
| Machine Weight | 600 kg ±10 |
| Machine Dimensions | 1820(L) x 1520(W) x 1570(H) mm |
