DSW-6012PN Automatic Coil Winding Machine

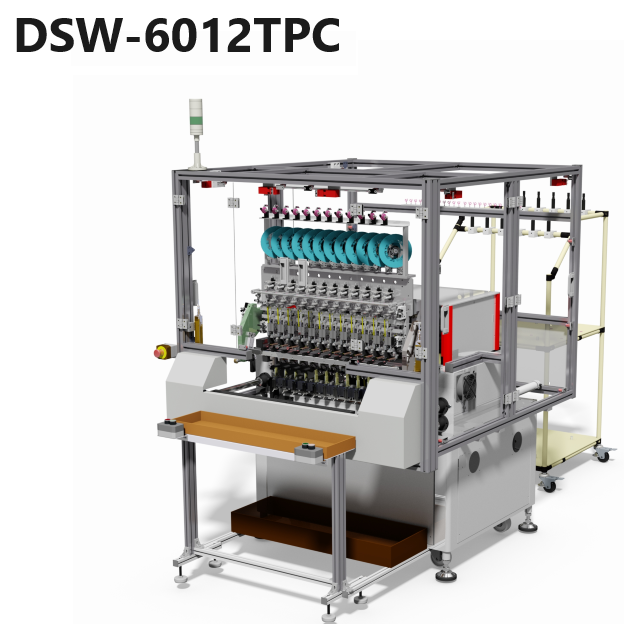

DSW-6012TPC Automatic Coil Winding Machine(Including Taping mechanism)

DSW-6012PTN Automatic Coil Winding Machine(Including Twisting mechanism)

Applications

The DETZO DSW-6012 Series is engineered for production lines demanding superior throughput and high-speed stability. Integrated with high-performance PLC servo control, this series exhibits exceptional dynamic response when processing transformer, inverter, and inductor coils. For automotive and industrial applications, such as ignition, valve, car horn, and side-mirror coils, the DSW-6012 ensures consistent precision during continuous high-speed operation. Whether for relay, adapter, switching, or primary coils, this equipment delivers stable and efficient winding quality to meet diverse processing requirements for all related coil types.

Suitable for - coil winding with outer diameter less than 45mm

Suitable for-Winding and Taping

Feature

The Keyence system is combined with an AC servo motor drive system for precise positioning.
Intuitive and simple operation, with 10" HMI to edit programs in dialogue mode, easy to use.
Special quickly change winding tooling.
Automatic pin wrapping & residual wire removal system.
Built-in 0°, 90°, 120° three wrapping on pin angle settings, one-time completion of multiple angles of winding.
120 sets of programs can be stored, and program switching is fast.
Hierarchical management and password storage function to prevent non-related personnel from modifying the program.
The structure is simple, the control is easy, and the maintenance is convenient.

Technical Specifications

No. of Spindle

12 Spindles (60mm pitch)

Max. Speed

13,500 rpm

Wire Diameter

Ø0.02 ~ Ø0.50 mm

Control System

PLC 4-Axis Servo Control

Nozzle Movement	X: 120 / Y: 130 / Z: 80 mm	Positioning Accuracy	Disp: 0.01mm / Angle: ±0.5°
Winding Range	Max. Dia: 45mm / Max. Width: 80mm	Wrapping Angle	0°, 90°, 120°
Infrastructure	3Φ 220Vac \| 50~60Hz \| 0.4~0.6Mpa	Power Consumption	4.5KW
Storage Method	Memory Card	Machine Weight	1500kg ±10
Machine Dimensions	1500(L) x 1400(W) x 2000(H) mm
Twisting Spec (Opt.)	Wire: Ø0.03~0.15mm / Length: 350mm	Twisting Performance	Turns: 1~9T / Speed: 6,000rpm
Taping Spec (Opt.)	Outer Dia: Ø50~130mm / Width: 2~20mm (Please contact us if it exceeds the usage range)

Optional Accessories

CE Certification

Safety Guard

Bifilar winding

Wire Breakage Detection

Twisting Mechanism

Taping Mechanism

Wire Hooking (Pressing) Mechanism

Cutter (Nipper) Mechanism

Tension released mechanism

Servo Wire clamper Mechanism

Servo Loading/Unloading Mechanism

Model	DSW-6012PN	DSW-6012PTN	DSW-6012TPC
	Automatic 12 Spindles Coil Winding Machine	Automatic 12 Spindles Coil Winding Machine + Twisting Mechanism	Automatic 12 Spindles Coil Winding Machine + Taping Mechanism
