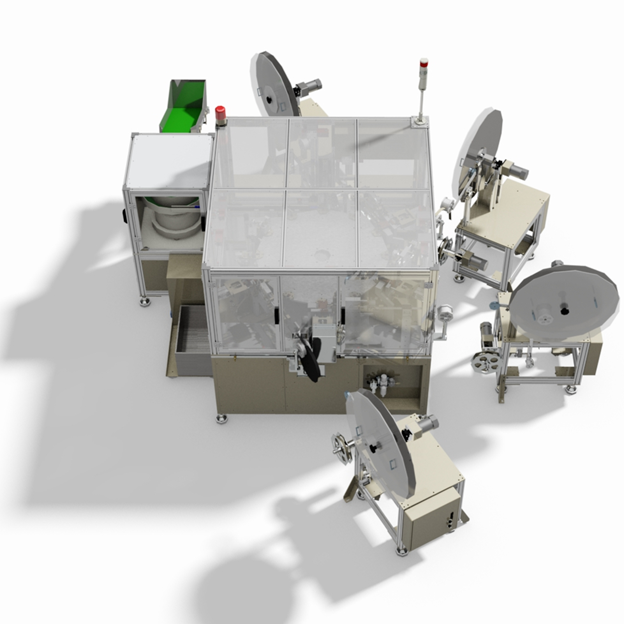

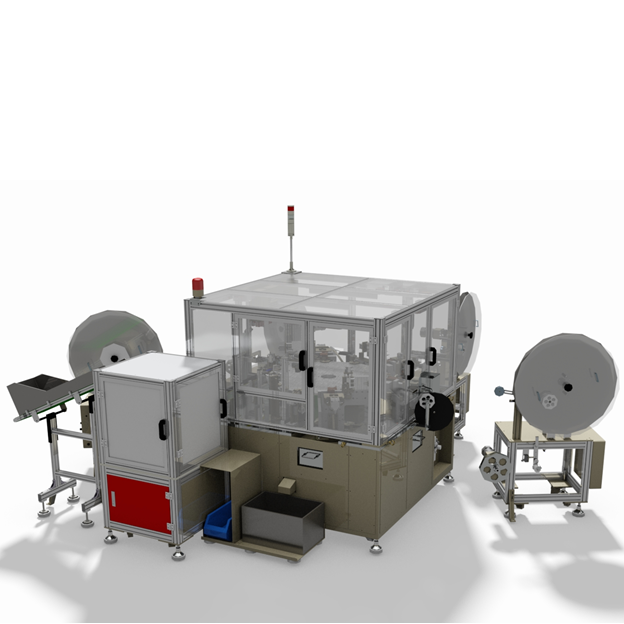

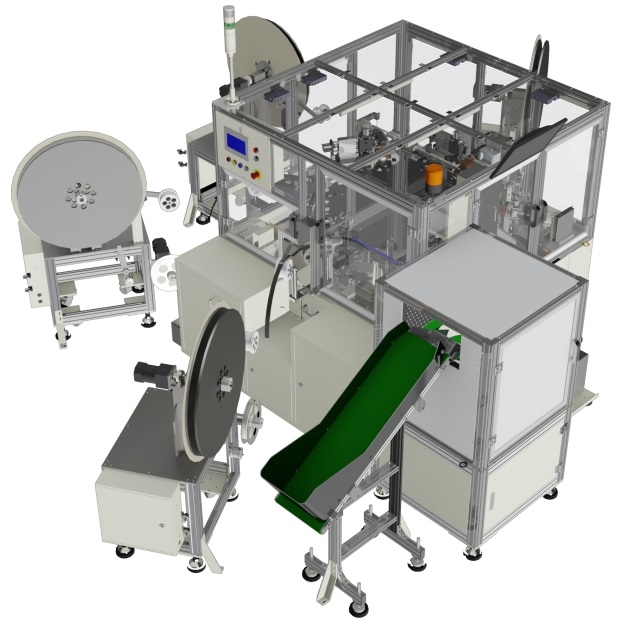

Automatic Rotary 12-Stations Pin Inserting Machine
DSW-IP12
Applications
Feature

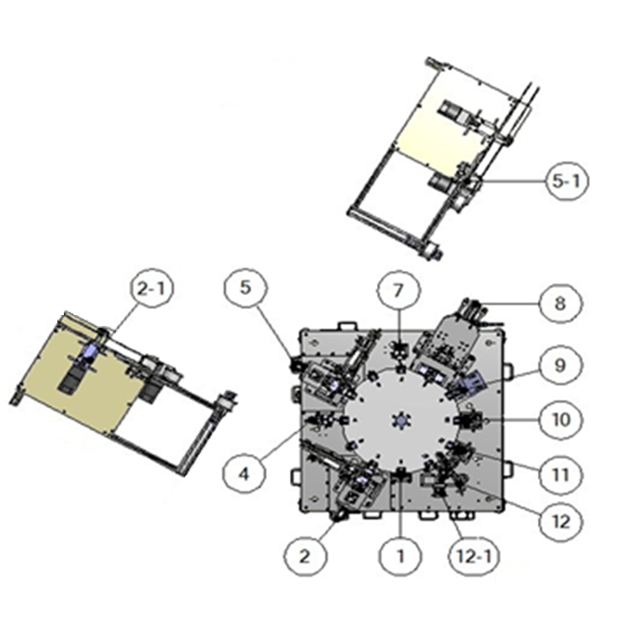

- Please contact us for the function change of different stations
- Station1 - feeding mechanism (vibrating plate + conveyor belt)
- Station2 - Check whether materials are present
- Station3 - Style 1 left pin (send pin + cut pin + insert pin)
- Station4 - Empty Station
- Station5 - Style 1 right pin (send pin + cut pin + insert pin)
- Station6 - Empty Station
- Station7 - Style 2 left pin (send pin + cut pin + insert pin)
- Station8 - Empty Station
- Station9 - Style 2 Right pin (send pin + cut pin + insert pin)
- Station10 - Pin length detection + CCD skew detection
- Station11 - OK&NG unloading
- Station12 - Empty Station
- When producing style 1, style 2 does not working. When changing styles, HMI operation is used to change styles with one click.
- HMI panel, fast setting and easy operation.
- Hierarchical management and password storage function to prevent non-related personnel from modifying the program.
- The structure is simple, the control is easy, and the maintenance is convenient.
Specification
| Controller | PLC |
|---|---|
| Power supply | 1Φ 220Vac |
| Rated frequency | 50 ~ 60Hz ±1% |
| Power consumption | 1.5KW |
| Air pressure demand | 0.4 ~ 0.6Mpa |
Optional Item
