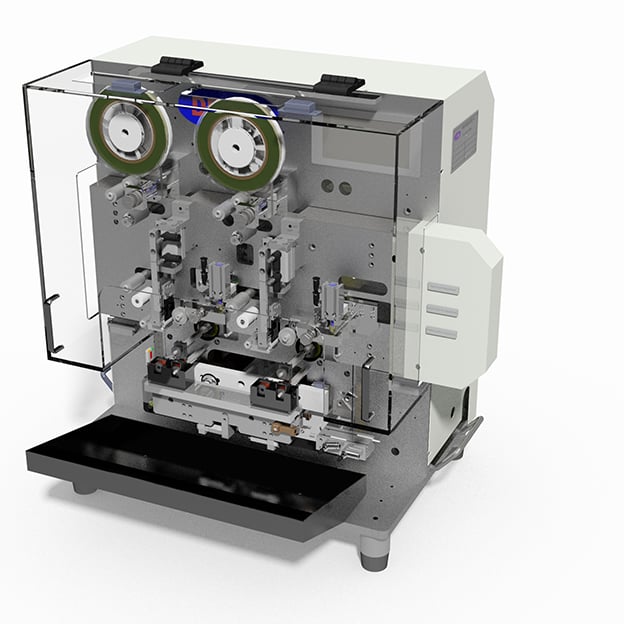

DSW-TAPE1602 Benchtop 2 Spindles Taping Machine
【Dual-Spindle Efficiency, Doubled Throughput — The Ultimate Solution for High-Volume Taping】
The DETZO DSW-TAPE1602 is a tabletop dual-spindle automatic taping machine engineered to maximize production output. By utilizing a synchronized dual-spindle structure, it allows for simultaneous processing, effectively doubling your capacity within the same footprint. Designed for versatility, this machine accommodates product dimensions from Ø8mm to Ø45mm, making it ideal for a wide array of transformer cores, electronic coils, and relay components. Featuring an intuitive PLC control system and rapid changeover fixtures, the DSW-TAPE1602 not only enhances operational uptime but also guarantees precision and consistency in every insulation wrapping cycle.
Transformer E-core or coil taping
Coil taping
Relay coil taping
Inverter component taping
Transformer coil taping
Small transformer taping
HF transformer taping
Transformer component taping
High-Performance Tabletop Dual-Spindle Automatic Taping Solution:
The DETZO DSW-TAPE1602 is engineered for production lines aiming to maximize throughput. Featuring a dual-spindle parallel processing structure combined with PLC data management and automatic loading/unloading capabilities, it delivers stable, rapid, and precise insulation wrapping for transformer cores and various coils.
- Data Management: Integrated PLC storage system simplifies production data analysis and program optimization.
- Intuitive Control: HMI-based program editing with graphical interface enhances operational convenience.
- Rapid Changeover: Unique fixture design allows for quick adaptation to various product specifications.
- Throughput Optimization: Equipped with automatic loading/unloading (except special models) to boost output.
- Flexible Positioning: Dual spindles can be freely set to any angle to meet diverse process requirements.
- Quick Adjustment: Streamlined setup for tape replacement and tension adjustment reduces downtime.
- Smart Storage: Supports memory for up to 4 programs for fast switching between different patterns.
- Security Management: Multi-level access and password protection prevent unauthorized program changes.
- Efficient Startup: Industrial-grade foot switch included to optimize the operational workflow.
- Simple Maintenance: Minimalist and robust mechanical design ensures easy control and low maintenance.
| Max. Speed | 240rpm (CW/CCW) | Positioning Accuracy | +/-1° |
|---|---|---|---|
| Angle Setting | 360° / Round | Control System | PLC |
| Power Supply | 1Φ 220Vac | 50/60Hz ±1% | Air Requirement | 0.4~0.6Mpa |
| Power Consumption | 400W | Machine Weight | 85kg ±10 |
| Machine Dimensions | 590(L) x 450(W) x 600(H) mm | ||
| Model | DSW-TAPE1602 | DSW-TAPE1604 |
|---|---|---|
| Benchtop Taping Machine | Benchtop Taping Machine |
