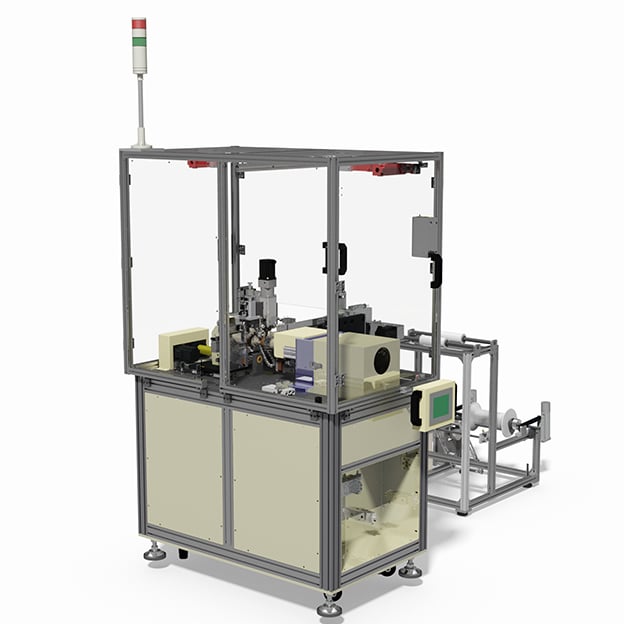

DSW-HCB Automatic Flat-Wire Winding Machine
【Flat-Wire Winding Specialist: DSW-HCB for High-Efficiency Magnetic Components】
The DETZO DSW-HCB Automatic Flat-Wire Winding Machine is engineered for precision electronic components requiring high power density. Specifically optimized for the unique geometry of flat wire, this model provides exceptional control over dimensions ranging from 0.12~0.90mm(T) x 1.50~3.00mm(H). By ensuring precise layering and tight tolerances, the DSW-HCB maximizes the space factor (fill factor) and significantly enhances thermal performance. Whether for high-frequency transformers in EV power systems, high-performance inductors, or next-generation energy-saving motor stators, DSW-HCB delivers low-loss, superior winding quality through high-precision tension and displacement control.
Finished OD - Ø6 ~ Ø15mm
Solar & Renewable Energy Applications
Automotive-Grade High Current Coils
High Power Density Vertical Winding
SMD High Current Power Inductors
Air-Core Flat Wire Winding
Customized Flat Wire Components
Low Loss High-Frequency Coils
Data Analysis
The data storage PLC makes the production programs easy to analyze and evaluate.
Intuitive Operation
Operation is intuitive and simple, combined with an HMI for easy program editing and use.
Quick Changeover
Special winding mold design allows for high-precision and rapid tooling replacement.
Program Storage
Stores up to 100 sets of programs, ensuring fast switching between different production styles.
Access Control
Hierarchical management and password protection prevent unauthorized personnel from modifying programs.
Easy Maintenance
The structure is simple, control is straightforward, and maintenance is highly convenient.
| Applicable Wire | 0.12~0.90(T) x 1.50~3.00(H) mm | Control System | PLC 4-axis NC Control |
|---|---|---|---|
| Angle Setting | 360.0 unit / rev. | Positioning Accuracy | 0.01mm |
| Mold Life | 1,000,000 cycles | Air Requirement | 0.4 ~ 0.6MPa |
| Power Supply | 1Φ 220 Vac | 50~60 Hz ±1% | Power Consumption | 1.5kW |
| Machine Weight | 300kg ±10 | Machine Dimensions | 1165(L) x 715(W) x 1800(H) mm |
