Air-Coil Series Automatic Winding Machine

DSW-0001P Automatic Air-Coil Winding Machine

Applications

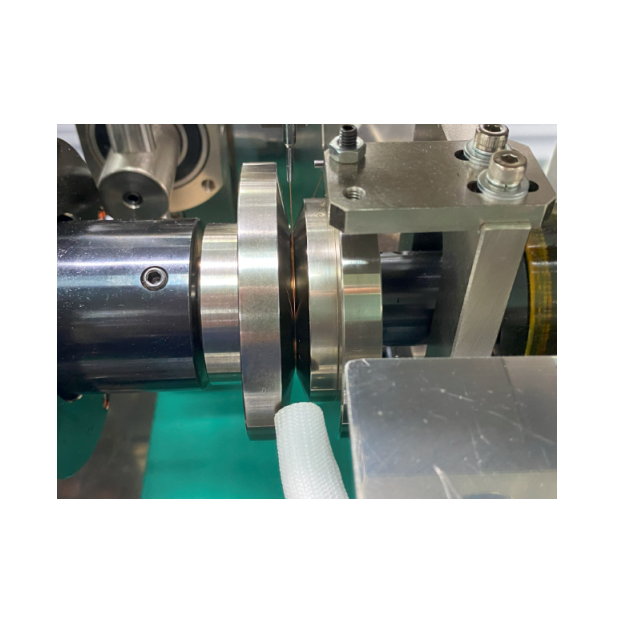

The DETZO DSW-0001P is a precision winding machine specifically designed for self-bonding coils, compatible with both alcohol-based and hot-air-type bonding wires. This equipment specializes in the precision winding of IC card coils, smart card coils, and various bobbinless air-core coils. Featuring advanced molding control and precise heating/alcohol-dampening systems, the DSW-0001P ensures rapid solidification and superior dimensional accuracy after winding. It is the high-efficiency choice for the production of smart identification components requiring exceptional quality.

Suitable for-self-adhesive coils

Feature

High-Efficiency Automated Winding: Integrating Keyence systems with AC servo motor drives to achieve extreme positioning accuracy. Featuring unique quick-change tooling design and 120-program memory, this solution significantly reduces downtime and enhances production flexibility for modern industrial environments.

Exact Positioning: Combines Keyence control with AC servo drives to ensure millisecond-level precision.

Dialogue HMI: 10" large interface with conversational programming for intuitive and effortless setup.

Quick Changeover: Unique winding tooling design allows for rapid swapping to accommodate diverse products.

Mass Storage: Stores up to 120 programs, enabling fast style switching and reduced changeover time.

Security Logic: Hierarchical access and password protection prevent unauthorized modifications to maintain integrity.

Simplified Maintenance: Robust mechanical structure with easy controls for minimal operational overhead.

Technical Specifications

No. of Spindle

Single Spindle

Spindle Speed

Max 3000 rpm (CW/CCW)

Wire Diameter

Ø0.10 ~ Ø0.50mm

Control System

PLC 6-axis control

Nozzle Movement	X: 40 / Y: 40 / Z: 80 mm	Positioning Accuracy	Disp: 0.01mm / Angle: ±0.5°
Applicable Wire	Self-bonding (Alcohol/Hot-air)	Max Process Size	O.D. 45mm / Width 10mm
Power Supply	1Φ 220Vac \| 50 ~ 60Hz ±1%	Data Storage	Memory Card
Power Consumption	4.2KW	Air Requirement	0.4 ~ 0.6Mpa
Machine Weight	650kg ±10	Machine Dimensions	1245(L) x 1270(W) x 1825(H)mm

Optional Accessories

CE Certification

Safety Guard

Wire Break Detection

Hot Air Bonding Mechanism

Cold Air blower mechanism

Mold Cleaning Unit

Gravity Discharge Mechanism

Wire hook(press) mechanism

Cutter Mechanism

Tailstock Device

Tension released mechanism
