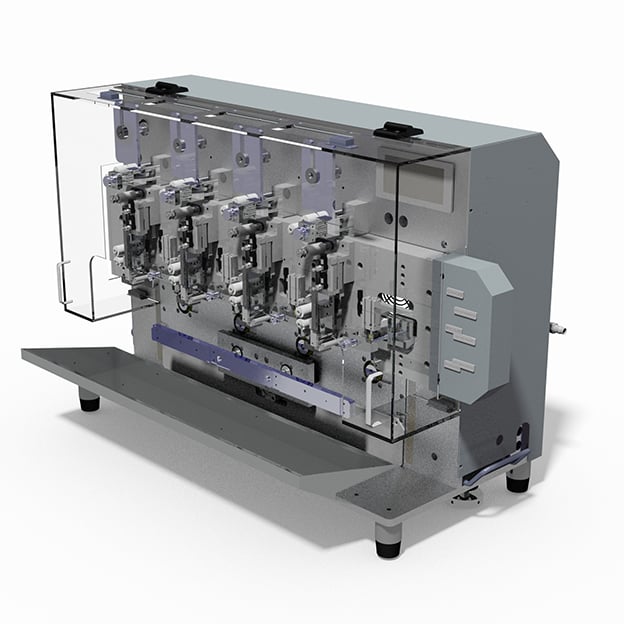

DSW-TAPE1604 Benchtop 4 Spindles Taping Machine
【4-Spindle Synchronous Power: Maximize Your Throughput with Precision】
The DETZO DSW-TAPE1604 is a high-performance benchtop automatic taping machine engineered for manufacturers demanding extreme production efficiency. Featuring a 4-Spindle synchronous processing structure, it enables the simultaneous processing of four components, significantly multiplying productivity within a compact footprint. This versatile solution accommodates product dimensions ranging from Ø8mm to Ø45mm, making it the ideal choice for high-volume transformer cores, electronic coils, and relay components. Equipped with an intuitive PLC system and rapid changeover fixtures, the DSW-TAPE1604 optimizes operational uptime while guaranteeing superior precision and consistency for every insulation wrapping cycle.
Transformer E-core or coil taping
Coil taping
Relay coil taping
Inverter component taping
Transformer coil taping
Small transformer taping
HF transformer taping
Transformer component taping
High-Capacity Benchtop 4-Spindle Automatic Taping Solution:
The DETZO DSW-TAPE1604 is a high-performance benchtop solution designed for high-volume production, featuring a 4-spindle synchronous processing structure. Integrated with smart PLC data management and automated loading/unloading technology, it provides precise and efficient insulation wrapping for transformer cores and electronic components.
- 4-Spindle Processing: Four spindles operate simultaneously to maximize productivity and minimize cycle time.
- Smart Data Analysis: Built-in PLC allows for seamless data storage, program tracking, and analysis.
- Intuitive HMI Control: User-friendly interface for easy program editing and operation without complex training.
- Rapid Changeover: Unique fixture design enables quick adaptation to various product specifications.
- Automation Ready: Features automatic loading/unloading (except special models) for enhanced throughput.
- Precision Positioning: All four spindles can be freely set to any angle to meet diverse wrapping requirements.
- High Flexibility: Supports memory storage for rapid switching between different program styles.
- Security Control: Multi-level management and password protection prevent unauthorized program modifications.
- Efficient Workflow: Equipped with an industrial foot switch to save labor and streamline the operation.
- Minimalist Maintenance: Simple mechanical structure ensures easy control and low long-term maintenance costs.
| Max. Speed | 240rpm (CW/CCW) | Positioning Accuracy | +/-1° |
|---|---|---|---|
| Angle Setting | 360° / Round | Control System | PLC |
| Power Supply | 1Φ 220Vac | 50/60Hz ±1% | Air Requirement | 0.4~0.6Mpa |
| Power Consumption | 400W | Machine Weight | 125kg ±10 |
| Machine Dimensions | 910(L) x 450(W) x 600(H) mm | ||
| Model | DSW-TAPE1602 | DSW-TAPE1604 |
|---|---|---|
| Benchtop Taping Machine | Benchtop Taping Machine |
