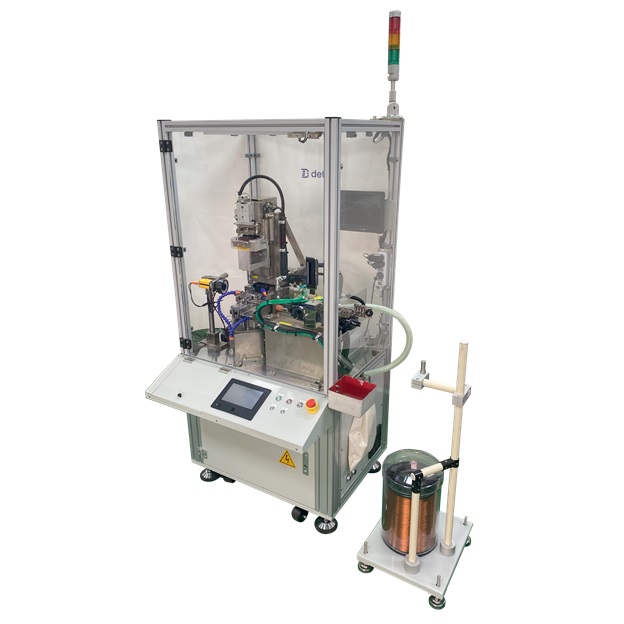

Automatic Inductor Coreless Winding Machine
DCW-01SCW
Applications
Feature
The DCW-01SCW inductor coreless winding machine is a fully automated coil customization production model specially designed for the production of low-orbit satellite inductor coils. It can significantly reduce direct labor hours and manufacturing costs.
- PLC 6-axis servo control.
- The XYZ axis uses a 100W servo motor with fast movement and precise positioning characteristics.
- Precise tension control ensures quality.
- Simple high-level language commands, paired with a 6" LCD screen editing program.
- Password storage function prevents unauthorized persons from modifying the program.
- It has simple structure, easy control, few faults and easy maintenance.
Specification
| No. of spindle | 1 Spindle |
|---|---|
| Spindle speed | Max. 3000rpm (CW/CCW) |
| Applicable wire dia. | Ø0.20 ~ Ø0.50mm(If the usage exceeds the scope, please contact us separately.) |
| Applicable core size | Ø3 ~ Ø6mm(If the usage exceeds the scope, please contact us separately.) |
| Controller | PLC 6-axis control |
| Storage | Memory card |
| Power supply | 1Φ 220Vac |
| Rated frequency | 50 ~ 60Hz ±1% |
| Air pressure demand | 0.5 ~ 0.6Mpa |
| Machine dimensions | 1400(L) x 820(W) x 2100(H)mm |
| Machine weight | 400kg ±10 |
Optional Item
