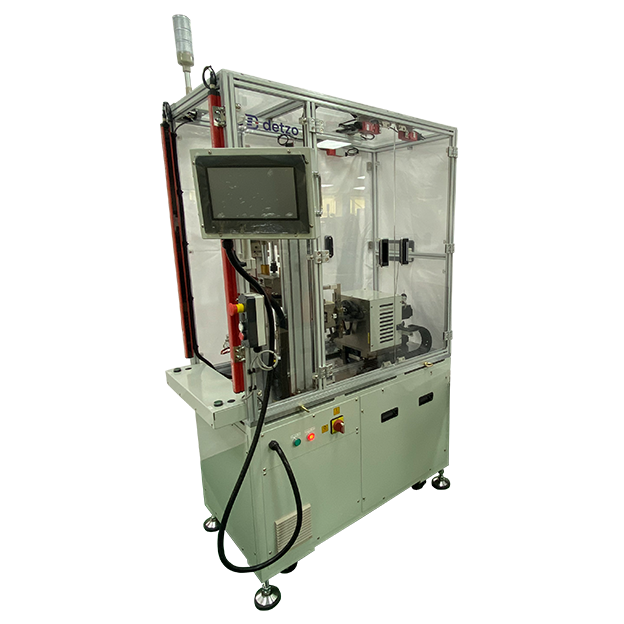

Automatic Flyer Winding Machine
The DETZO DSW-FM01 is a professional winding system specifically engineered for high-quality brushless DC (BLDC) motor production. Featuring exceptional structural rigidity, this model handles stators with a maximum outer diameter of up to 160mm, making it an essential tool for manufacturing E-Bike hub motors and large-scale drone propulsion motors. With precision servo motion control, the DSW-FM01 ensures a high copper-fill factor and neat wire layering within narrow slots, maximizing stator electromagnetic efficiency. Whether for green mobility power, aerospace-grade drone systems, or high-performance industrial drives, this equipment provides stable, efficient, and high-precision automated winding support for all related BLDC motor stators.
Stator max. O.D. 160mm
- The DSW-FM01 Flyer Winding Machine combines the Keyence control system with the Yaskawa servo motor drive system, ensuring that your winding tasks are executed with the highest precision, even meeting the most demanding specifications. This guarantees accurate winding, thereby maintaining the quality and integrity of the product.
- The DSW-FM01 Flyer Coil Winding Machine can store up to 120 programs, allowing for easy switching as needed, offering high flexibility to quickly adapt to varying production demands and product specifications. Its 10-inch Human-Machine Interface (HMI) provides user-friendly interaction, enabling intuitive program editing through a dialogue-based interface, simplifying the programming process for operators of all skill levels. Additionally, this automatic flyer coil winding machine features tiered management and password storage functions, adding a layer of security to prevent unauthorized personnel from modifying programs, ensuring data integrity and process reliability.
- The DSW-FM01 Automatic Flyer Winding Machine is designed to streamline your winding operations and optimize productivity. It offers a range of features that meet high standards of precision, efficiency, and user-friendliness. With its simple structure, easy-to-use controls, and convenient maintenance procedures, this machine helps minimize downtime and ensures long-term reliability. DETZO's automatic winding machine is the ideal solution for companies seeking an efficient and reliable winding machine for their operations.
| Servo Accuracy | 0.01 mm | Stop Accuracy | ±0.5° |
|---|---|---|---|
| Servo Travel | X-axis 100mm (F/B) / F-axis 80mm (F/B) / C-axis 15mm (Open/Close) | ||
| Max. Stator Spec | Max. OD: 160 mm / Max. Height: 60 mm | ||
| Power Supply | 1Φ 220Vac | 50~60Hz | Air Requirement | 0.4 ~ 0.6 Mpa |
| Power Consumption | 2.6 KW | Storage | Memory Card |
| Dimensions | 1950(L) x 850(W) x 1550(H) mm | Weight | 680 kg ±10 |
In today’s pursuit of energy conservation and environmental sustainability, businesses face not only market trends but also a growing responsibility toward our planet. DETZO is deeply committed to the research and technological innovation of energy-efficient electrical components. We strive to deliver advanced equipment tailored for the production of energy-saving components, including winding machines, assembly machines, and even full-scale factory automation planning—providing our clients with comprehensive and customized solutions.
The DSW-FM01 Automatic Flyer type Stator Winding Machine is specifically designed for the high-efficiency mass production of energy-saving washing machine motors. It can also be flexibly adapted to manufacture various types of drive motor products, such as those used in electric bicycles (E-Bikes), medical devices, and conveyor systems—offering exceptional versatility for diverse application needs.
From equipment selection and production line layout to automation integration, DETZO offers comprehensive technical support and professional guidance—dedicated to becoming your most trusted partner on the path toward energy-efficient manufacturing transformation.
📩 Welcome to contact us, immediately to start a new chapter of your efficient green energy manufacturing!
