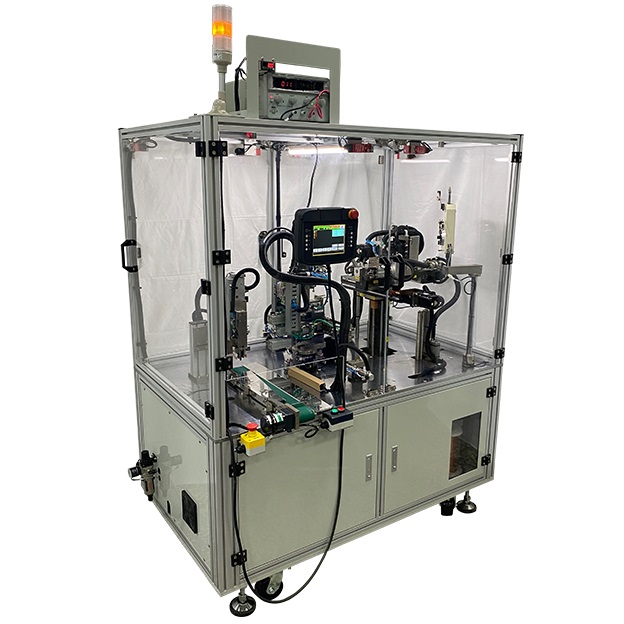

FCW-01LMT Automatic Angular-Type Hollow Coil Winding Machine
The DETZO FCW-01LMT is a high-precision winding system specifically engineered for linear motor rectangular coils. To meet the rigorous demands of linear motors for space-fill factor and electromagnetic efficiency, this model provides exquisite control over the winding path, ensuring that rectangular structures remain perfectly layered without overlapping or deformation. Equipped with a superior tension stability system, the FCW-01LMT is the premier technical choice for producing high-performance linear motor components, precision actuator coils, and various specialized geometric coils, empowering customers to achieve breakthroughs in high-density winding processes.
Linear motors operate with a direct drive mechanism, eliminating the need for traditional transmission components like ball screws or belts. This design greatly reduces mechanical backlash and enables fast, smooth, and highly responsive motion. With a simplified structure, the system delivers high rigidity and dynamic performance, allowing for exceptional positioning accuracy and repeatability. Linear motors also offer high speed and acceleration capabilities while maintaining low noise and minimal friction, significantly improving productivity. Their low maintenance and long service life make them an ideal choice for modern precision automation systems.
- DETZO’s full range of automatic winding machines is designed to simplify your winding operations and boost productivity. The machines feature a streamlined structure, intuitive controls, and easy maintenance procedures that help reduce downtime and ensure long-term reliability—all while delivering high precision, efficiency, and user-friendliness.
- The system can store up to 120 programs, allowing for fast switching and high flexibility to meet various product specifications and production demands. The 6-inch Human-Machine Interface (HMI) adopts a conversational layout that simplifies program editing, enabling even novice operators to operate with ease. Password-protected access control and user-level management further enhance system security by preventing unauthorized modifications and ensuring process integrity.
- If you require custom linear motor windings based on specific stroke lengths, force requirements, or unique application scenarios, DETZO offers a full range of design and manufacturing solutions. Feel free to contact us to learn more about how we can help you build the perfect motion system for your needs.
| Power Consumption | 5 KVA | Max Turns | 135 Turns |
|---|---|---|---|
| Min Coil O.D. | 20 x 30 mm | Max Coil O.D. | 74 x 40 mm |
| Nozzle Travel (X) | 150 mm (Front-Back) | Nozzle Travel (Y) | 200 mm (Left-Right) |
| Nozzle Travel (Z) | 310 mm (Up-Down) | Data Storage | Memory Card |
| Air Pressure | 0.4 ~ 0.6 Mpa | Power Supply | 1Φ 220Vac | 50~60Hz |
| Machine Weight | 500 kg ±10 | Dimensions | 1470 x 900 x 1650 mm |
FCW-01LMT | Linear Motor Rectangular Coil Winding Machine
DETZO — Engineered for High-Performance Linear Motors
In linear motor manufacturing, the winding precision of Rectangular Coils is the core factor for success. FCW-01LMT provides advanced automated solutions for tension spikes and overlapping at corners, optimizing the Fill Factor and Thrust Density.
Technical Highlights
Precision Tension Compensation
Automatically compensates for tension fluctuations in non-circular paths, preventing wire fatigue and ensuring quality consistency.
High-Density Layering
Utilizes high-resolution servo synchronization for Wire-to-Wire layering, maximizing magnetic field efficiency.
Why DETZO is Your Trusted Partner?
By implementing Dynamic Velocity Compensation and High-Sensitivity Tension Sensing, we solve the stress issues that traditional winders cannot. We offer more than equipment; we deliver decades of winding expertise.
