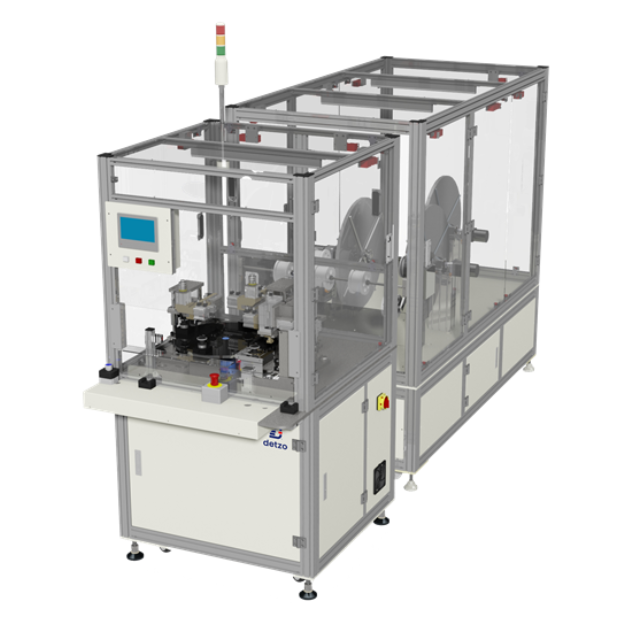

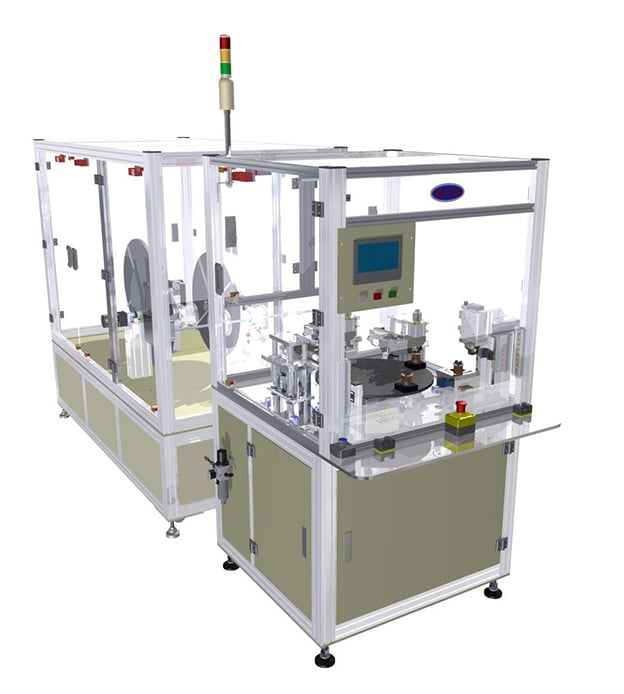

Automatic Rotary 4-Stations Pin Inserting Machine
DSW-IP04
Applications
Feature
- Please contact us for the function change of different stations
- Station1 - Manual loading / unloading station (Place 1pc at a time)
- Station2 - Insert the left pin1 station
- Station3 - Insert the right pin2 station
- Station4 - Insert the right pin3 station
- Station5 - Residual wire cutting station (Cut the residual wire by cutter)
- HMI panel, fast setting and easy operation.
- Hierarchical management and password storage function to prevent non-related personnel from modifying the program.
- The structure is simple, the control is easy, and the maintenance is convenient.
Specification
| Cycle time | 6sec. / 1pc |
|---|---|
| Controller | PLC |
| Power supply | 1Φ 220Vac |
| Rated frequency | 50 ~ 60Hz ±1% |
| Power consumption | 0.5KW |
| Air pressure demand | 0.4 ~ 0.6Mpa |
Optional Item
