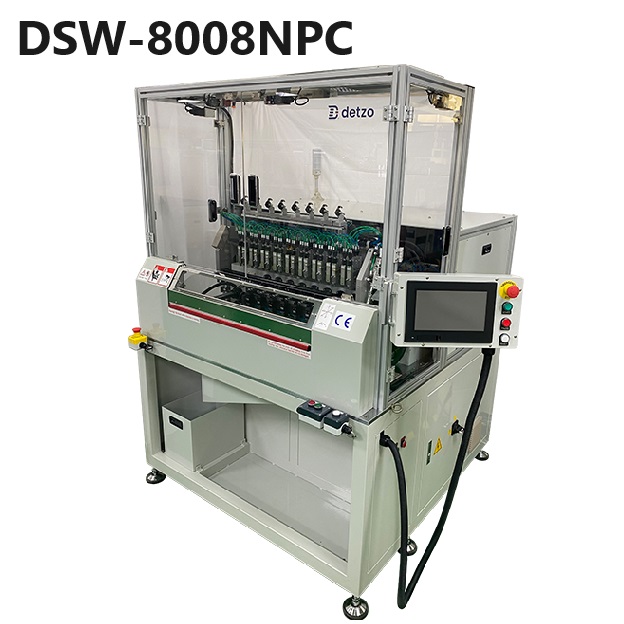

Automatic 8 Spindles Coil Winding Machine

DSW-8008NPC
Applications
Transformer coil, Relay coil, Inductor coil, Inverter coil, Valve coil, Ignition coil, Adapter coil, Switch coil, Car horn coil, Primary coil, Mirror coil and various related coil

Feature
  • The Keyence system is combined with an AC servo motor drive system for precise positioning.
  • Intuitive and simple operation, with 10" HMI to edit programs in dialogue mode, easy to use.
  • Special quickly change winding tooling.
  • With automatic loading and unloading function (except special models), increase production capacity.
  • Automatic pin wrapping & residual wire removal system.
  • Built-in 0°, 90°, 120° three wrapping on pin angle settings, one-time completion of multiple angles of winding.
  • 120 sets of programs can be stored, and program switching is fast.
  • Hierarchical management and password storage function to prevent non-related personnel from modifying the program.
  • The structure is simple, the control is easy, and the maintenance is convenient.

Specification

No. of spindle 8 Spindles
Spindle pitch 80mm
Applicable wire diameter Ø0.02 ~ Ø1.00mm
Spindle speed Max. 13500rpm (CW/CCW)
Angular accuracy +/-0.5°
Movement of Nozzle X-Axis 120mm (Front/Back)
Y-Axis 160mm (Left/Right)
Z-Axis 80mm (Up/Down)
Nozzle movement accuracy 0.01mm
Winding diagonal (max.) 60mm
Winding range (max.) 90mm
Pin wrapping angel 0°,  90° ,  120°
Controller PLC 4-axis control
Storage Memory card
Power supply 3Φ 220Vac
Rated frequency 50 ~ 60Hz ±1%
Power consumption 4.5KW
Air pressure demand 0.4 ~ 0.6Mpa
Machine dimensions 1200(L) x 900(W) x 1400(H)mm
Machine weight 1500kg ±10

Optional Item

  • CE equipment
  • Safety cover
  • Bifilar winding
  • Wire-broken sensor
  • Heater blower mechanism
  • Wire stripper mechanism
  • Twisting mechanism
  • Taping mechanism
  • Wire hook(press) mechanism
  • Cutter(clamper) mechanism
  • Tailstock mechanism
  • Tension released mechanism
  • Servo Wire clamper mechanism
  • Servo Load / Unload mechanism

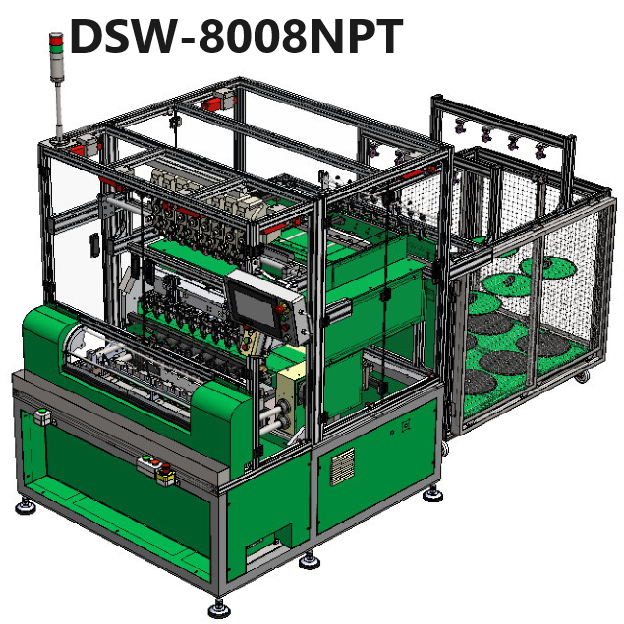

  • Model DSW-8008NPC DSW-8008NPT
    Automatic 8 Spindles Coil Winding Machine Automatic 8 Spindles Coil Winding Machine + Twisting Mechanism
