Solenoid Valve Coil Production Line

Applications

In medical devices and high-precision industrial sectors, the stability of solenoid coils is critical to equipment safety. DETZO designs highly integrated automated production lines tailored for the mass production of medical-grade coils and precision solenoid valves. Beyond precision winding, we integrate automated quality inspection and high-standard process controls. This ensures that the coils maintain excellent thermal stability and electromagnetic induction accuracy even under frequent operation, perfectly meeting the requirements of respiratory care, laboratory automation, and precision fluid control.

Fully Automated Production Line for Medical Devices and Precision Industrial Solenoid Coils

Core App: Medical Grade & Precision Solenoid Coils

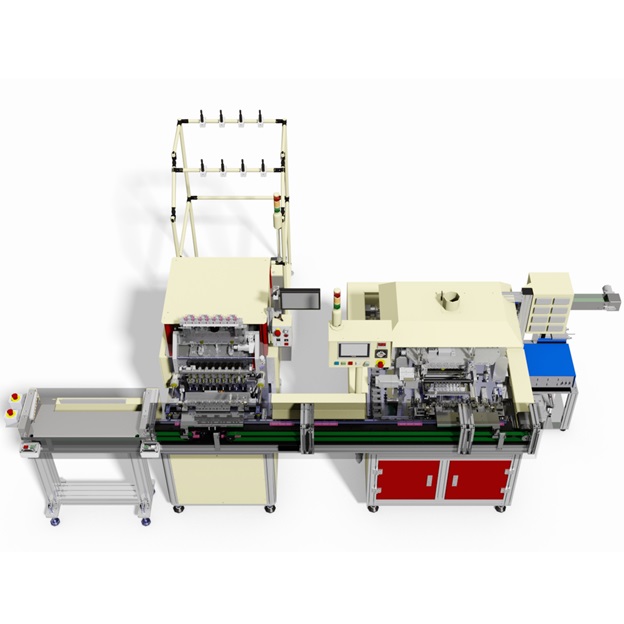

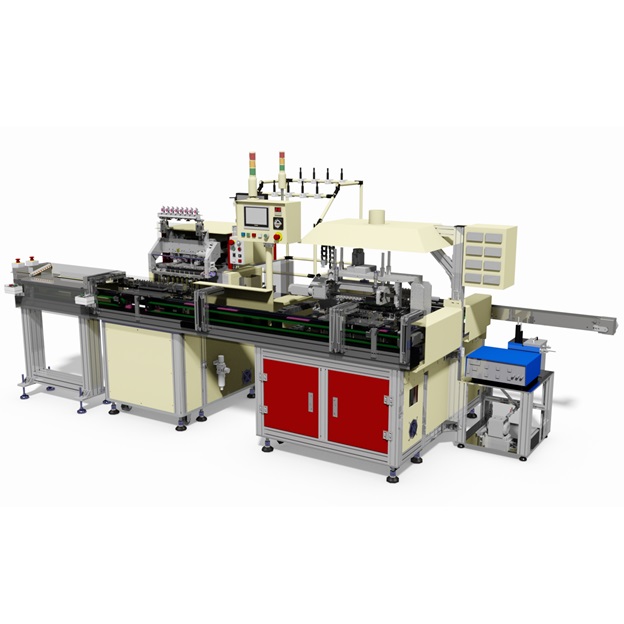

Solenoid Valve Coil: Automatic Production Line

The DETZO Solenoid Valve Coil Production Line is specifically engineered for high-quality solenoid valve coil production, with exceptional versatility for Medical Coils, Relay Coils, and precision sensors. This turnkey solution integrates flexible loading, automated winding, and gantry-type soldering/testing.

STAGE 01

Feeding & Winding

Combining the production flexibility of a manual loading station with the high performance of the DSW-4208P automatic winding machine.

STAGE 02

Soldering & Testing

Features an advanced Gantry-type soldering & testing system, synchronizing precise electrical validation with dipping processes.

STAGE 03

Final Output

Fully verified finished products are automatically output, delivering a seamless automated workflow from feeding to final collection.

Defining precision standards for global industrial and medical solenoids

DETZO Turnkey Solutions

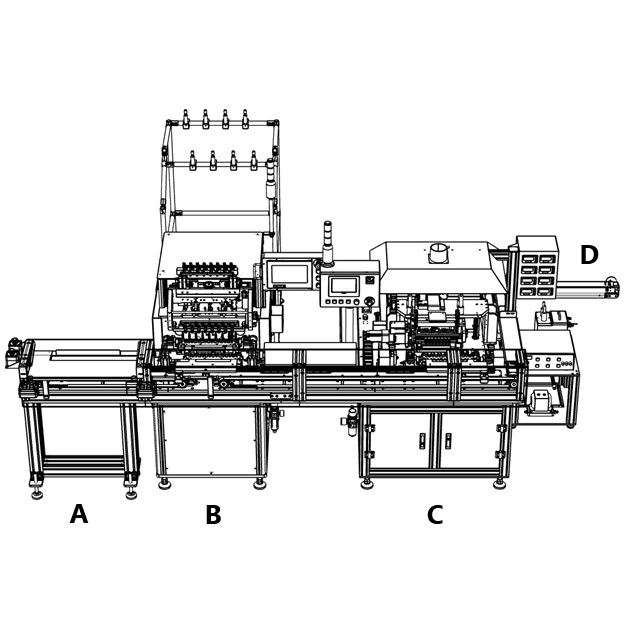

Solenoid Valve Coil: Production Process Flow

STEP 01 | Loading & Winding Process

A. Manually loading station - Precise bobbin placement
B. DSW-4208P automatic coil winding machine - High-efficiency winding

STEP 02 | Integrated Soldering & Testing

C. Gantry-type soldering & testing machine - High-precision terminal processing

STEP 03 | Product Output

D. Finished product output - Automated collection system
