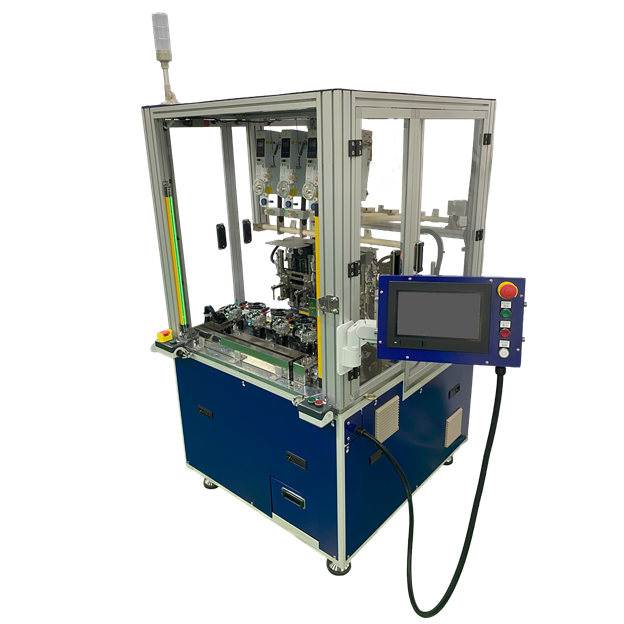

Automatic In-Slot Needle Stator Winding Machine
The DSW-1504M, engineered by DETZO, is a high-speed automated winding machine specifically designed for premium In-slot Stator production, providing a professional solution for precision winding in inner rotor motors. Optimized for compact stators with a maximum outer diameter of 40mm, this stator needle winding machine utilizes advanced servo-controlled needle technology to achieve superior layering and a high copper fill factor within confined slot openings. By significantly enhancing output torque and electromagnetic efficiency, the DSW-1504M serves as a critical asset for manufacturing lines producing industrial servo motors, power tools, and high-end household appliances that demand extreme precision and stability.
BLDC Motor: Precision In-slot Stator (Max. OD 40mm)
10-Axis Synchronous Control
Utilizes the KEYENCE system to achieve high-precision multi-axis linkage and stable operation.
High Torque Drive
Equipped with a 3 kW servo motor on the rotation axis for superior heavy-duty transmission performance.
Precise Tension Management
Integrated precision control system ensures constant winding tension for high-quality finished products.
Zero-Residual Automation
Features automated terminal wrapping and wire clearing to minimize material waste and optimize the process.
Conversational Programming
Includes a 10-inch HMI for intuitive, high-level language programming and rapid editing.
Data Access Security
Built-in password protection and permission management prevent unauthorized parameter changes.
Multi-Protection Modes
Switchable safety modes based on operational needs establish comprehensive equipment protection logic.
Optimized Maintenance
Compact mechanical structure and intuitive controls offer low failure rates and easy maintenance.
| Axis Travel | X: 200 / Y: 110 / Z: 115 mm | Positioning Accuracy | Disp.: 0.01mm / Angle: ±0.5° |
|---|---|---|---|
| Stator O.D. | Max. 40mm | Stator Height | 10~40mm (Incl. Insulator) |
| Power Supply | 3Φ 220Vac | 50~60Hz ±1% | Air Requirement | 0.4~0.6Mpa |
| Power Consumption | 20kW | Data Storage | Memory Card |
| Machine Weight | 900kg ±10 | Machine Dimensions | 1,300(L) x 1,100(W) x 2,135(H) mm |
Why Choose DETZO In-slot Stator Winding Solutions?
DETZO In-slot Stator Winding Machines are engineered for high-performance motor R&D and mass production. Within our advanced automated architecture, we seamlessly integrate precision layering with high-speed needle winding technology. Whether you are focused on industrial servo motors, high-efficiency BLDC, or custom specialized specifications, our solutions maximize copper fill factor and insulation integrity while ensuring consistent, superior production yields.
