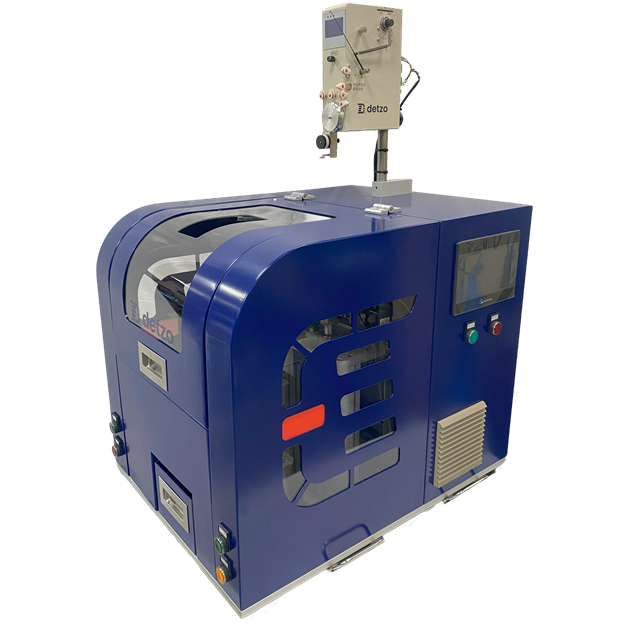

Single Spindle Benchtop CNC Coil Winding Machine
The DETZO DSW-01DW is a high-efficiency Benchtop CNC Single-Spindle Winding Machine, specifically engineered for the precision winding of relay coils and various micro-sized coils. Its compact design maximizes workspace utility without compromising industrial-grade stability, making it ideal for high-precision fine wire applications. Equipped with an intuitive CNC control system, the DSW-01DW is the premier choice for R&D prototyping and flexible small-to-medium production runs, ensuring exceptional consistency and quality for all types of related precision micro-coils.
Relay Coils
Compact Benchtop CNC Coil Winding Solution for Fine Wire Production
The DETZO Benchtop Single-Spindle CNC Coil Winding Machine is engineered for engineers, R&D laboratories, and small-scale manufacturers who require high-precision, automated winding of fine wires. Whether you are producing transformers, motors, inductors, or custom electronic coils, this single-spindle CNC coil winder combines speed, accuracy, and safety in a compact benchtop design.
With programmable tension control, wire-break detection, and an interlocked safety guard, this machine delivers reliable, high-yield results while protecting delicate wires and ensuring operator safety.
High-Speed Production (Up to 12,000 RPM)
Designed for ultra-fine wires, the benchtop coil winding machine achieves high-speed production without sacrificing precision. Ideal for small-scale manufacturing or R&D environments, it helps reduce production time while maintaining coil quality.
Programmable Pneumatic Tension Switching
Protect fragile wires with CNC-controlled dual-stage tension. Instantly switch between high and low tension to ensure consistent winding results for a variety of wire diameters, from ultra-fine to standard gauges.
Intelligent Wire-Break Detection
High-sensitivity sensors detect wire breaks in real-time and automatically stop the machine, minimizing material waste, downtime, and costly errors.
Interlocked Safety Guard
The safety guard complies with international industrial standards. Power is immediately cut if the guard is opened, protecting operators during setup and operation.
Compact benchtop CNC Design
The space-saving benchtop structure fits easily in R&D labs, small workshops, and production facilities, while still delivering industrial-grade accuracy. Its user-friendly interface simplifies programming and reduces the learning curve for operators.
Single Spindle Precision Winding
Perfect for prototyping and small-batch production, this single spindle winding machine ensures tight coil tolerance and repeatable results, ideal for high-precision electronics applications.
Applications of Benchtop Coil Winding Machine
DSW-01DW benchtop single-spindle CNC coil winder is designed for versatility and precision, making it suitable for a wide range of industries and purposes.
- Electronics R&D Labs – Produce precise coils for research and prototypes.
- Small-Scale Motor & Transformer Manufacturing – Consistent winding quality for delicate wires.
- Custom Coil Fabrication – Solenoids, inductors, and specialty coils.
- Educational & Training Use – Compact and easy to operate for teaching purposes.
| Servo Stroke | X: 50mm / Y: 50mm / Z: 50mm | Positioning Accuracy | Disp.: 0.01mm / Angular: ±0.5° |
|---|---|---|---|
| Winding Range | Max. Dia.: Ø10mm / Max. Width: 20mm | Infrastructure | 1Φ 220Vac | 50~60Hz | 0.4~0.6Mpa |
| Rated Current | 6.8A | Power Consumption | 1.5KW |
| Machine Dimensions | 770(L) x 630(W) x 640(H) mm | Machine Weight | 150kg ±10 |
Why Choose DETZO Single Spindle Benchtop CNC Coil Winder?
The DSW-01DW benchtop single-spindle CNC coil winding machine combines precision, speed, and safety in a compact desktop design. Whether you are prototyping, producing small batches, or conducting research, this CNC coil winder ensures reliable, high-quality results while protecting delicate wires and reducing material waste.
Ready to enhance your coil production process? Contact us today to learn more or request a quote for the DETZO benchtop CNC coil winding machine.
