What Is a Turnkey Winding Production Line, and What Does It Include?

What Is a Turnkey Winding Solution?

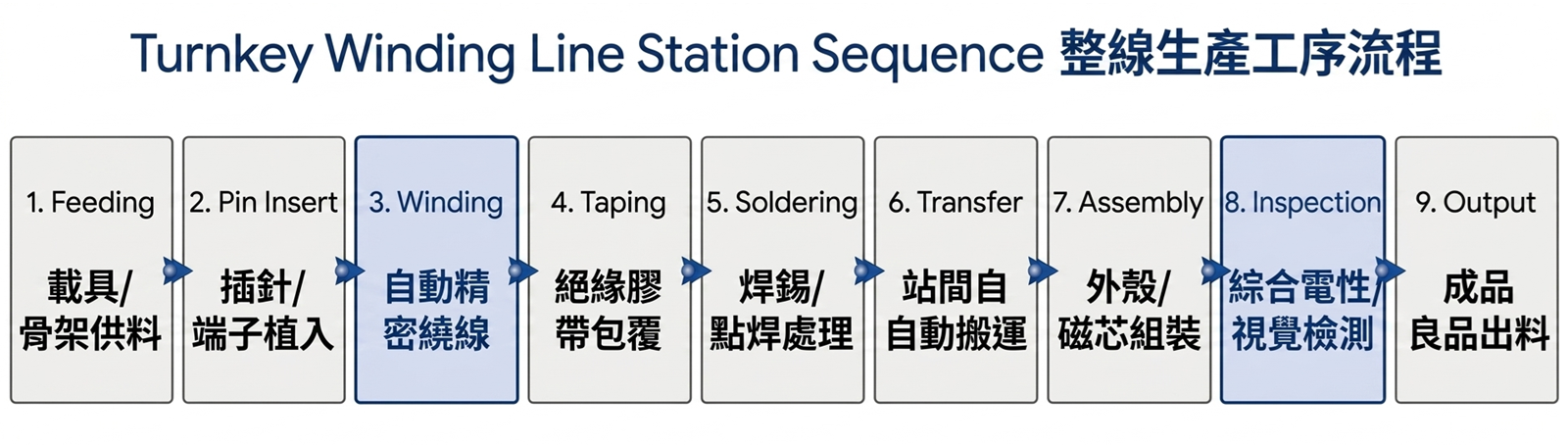

Process Architecture: The 9 Core Stations of a Turnkey Winding Line

According to research benchmarks from the IEEE Industrial Electronics Society, automated lines with integrated station-to-station quality checks achieve up to 35% lower scrap rates compared to multi-vendor setups. The standard workflow breakdown for an automated coil winding production line is as follows:

• 1. Feeding Automated feeding of bobbins, iron cores, or carriers via high-frequency bowl feeders, tray elevators, or flexible vision-guided robotics to eliminate manual loading errors and component contamination.
• 2. Pin Inserting High-speed servo insertion and swaging of terminal pins into the bobbin, ensuring precise alignment for subsequent wire wrapping and preventing loose pin defects.
• 3. Winding The core unit of the line. High-precision CNC Multi-Spindle or Needle Winding machines perform dynamic wire guiding, tension control, and terminal wrapping to eliminate wire overlapping and resistance drift.
• 4. Taping Precision application of margin, barrier, or outer insulation tape around coil layers under controlled tension to guarantee electrical isolation and prevent tape wrinkles.
• 5. Soldering & Welding Automated enamel wire stripping, dip soldering, selective soldering, or laser welding to establish robust electrical connections without cold joints or enamel damage.
• 6. Transfer High-speed indexing tables, linear motor tracks, or multi-axis robots seamlessly move bobbins between stations without human intervention or transfer wait times.
• 7. Assembly Automatic insertion of magnetic cores (E-core, Pot core), shielding cases, rubber grommets, or potting compound dispensing while preventing core cracking and mechanical misfits.
• 8. Inspection 100% inline quality control, including inductance (L), resistance (R), hi-pot insulation test, turn ratio, and 3D visual dimensional checks to block defective parts from moving downstream.
• 9. Output Automated sorting, laser QR code marking for full traceability, and packaging into good-part trays or rejected-part lanes to ensure good and bad parts are never mixed.

Quick Comparison: Turnkey Line vs. Multi-Vendor Procurement

According to McKinsey Industrial Automation Reports, managing multiple equipment suppliers increases project management overhead by average 28%.

Why Choose DETZO as Your Turnkey Winding Partner?

As a dedicated manufacturer of precision coil winding equipment, DETZO delivers pragmatic turnkey engineering tailored to real-world factory environments. DETZO assists global manufacturers by providing:

• In-House Co-Design & Feasibility Analysis Evaluating wire specs, bobbin tolerances, and cycle time targets during early-stage product design to optimize winding feasibility and prevent line bottlenecks.
• Unified Hardware & Motion Control Platform Building the entire line on a single, coherent control architecture, eliminating protocol translation lag, signal errors, and operator training complexity.
• Predictable Delivery & Single-Point Accountability Conducting full-line dry-run testing before delivery to guarantee rapid on-site setup, predictable ramp-up timing, and long-term single-source technical service.
